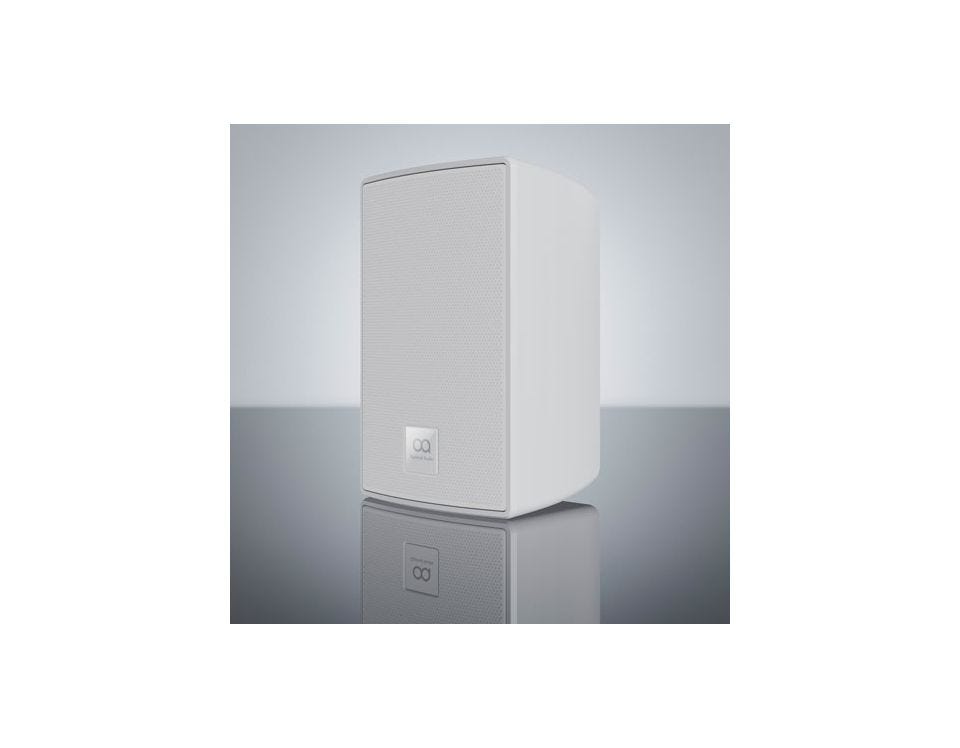

Cuboid 3TX is a full-range, two-way, passive 3” loudspeaker designed to give exceptional sound quality in a very small form factor for distributed applications with high-quality background music and speech reproduction.
With its attractive design and mounting hardware, Cuboid 3TX can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.
Cuboid 3TX features a 3.5” low-frequency driver and a 0.5” PEI dome high-frequency driver mated to a shallow wave guide for consistent HF distribution.
Each Cuboid 3TX can be run on a series of 70 or 100V taps or at low impedance. Tap selection is via a rotary switch on the rear of the cabinet.
When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end-user control simple and intuitive.
• Discreet size, high performance
• Portrait or landscape mounting options
• Wall bracket included
• Max SPL 98dB (continuous) 104dB (peak)
• 130° horizontal x 120° vertical coverage
• IP54 for outdoor use with accessory terminal cover
• 8 ohm or 70/100V line operation
