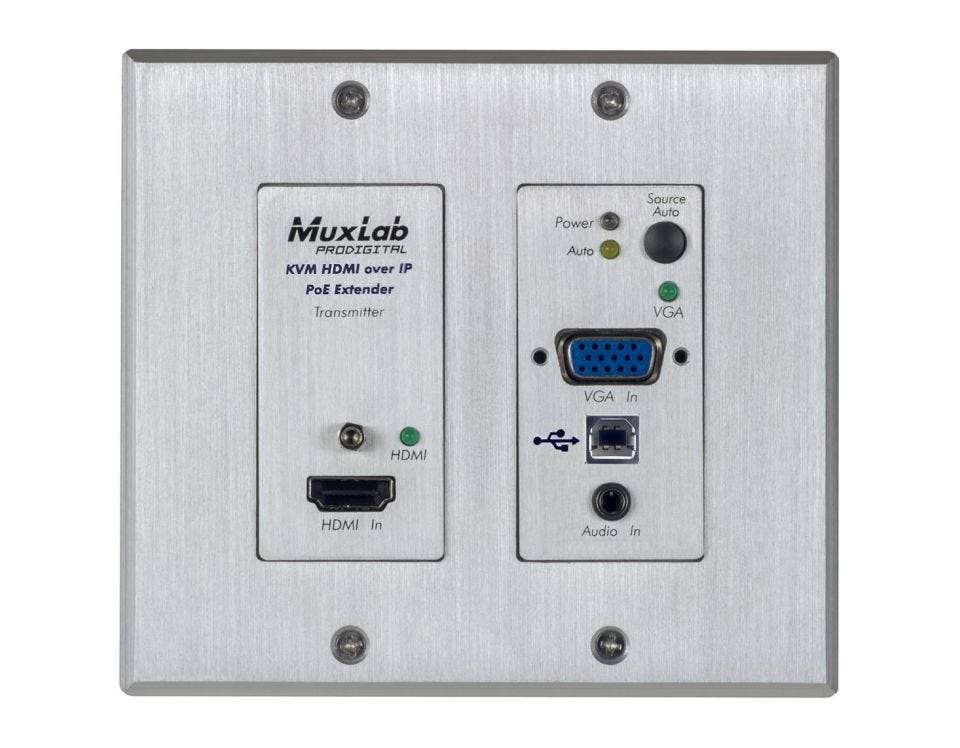

The HDMI/VGA/USB over IP PoE Wall Plate Transmitter allows HDMI, VGA and USB equipment to be connected up to 330ft (100m), with video supported at up to 4K (3840×2160) resolution @ 30Hz via one (1) Cat5e/6 unshielded twisted pair cable in a point-to-point configuration. The USB port may be used for extending various USB devices including Smart Boards. Point-to-multipoint and multipoint-to-multipoint configurations are also possible by connecting several Transmitters and Receivers to the same local Ethernet IP network via an Ethernet Switch. The HDMI/VGA/USB over IP PoE Wall Plate Transmitter also supports PoE (PD) if used with a PoE (PSE) Ethernet Switch. Additional Transmitters may be purchased separately depending on the intended application and number of units required.
For the point-to-multipoint and multipoint-to-multipoint configuration the Ethernet Switch must have Gigabit ports, Jumbo Frame capability, DHCP Server capability, PoE, and additionally support the IGMP communication protocol for the multipoint-to-multipoint case. MuxLab recommends using the Cisco SG300 or SG500 Series Managed Switches.
|Unit of Measure||EA|
|Availability||Out of Stock|
