Access Point AC Mesh Pro

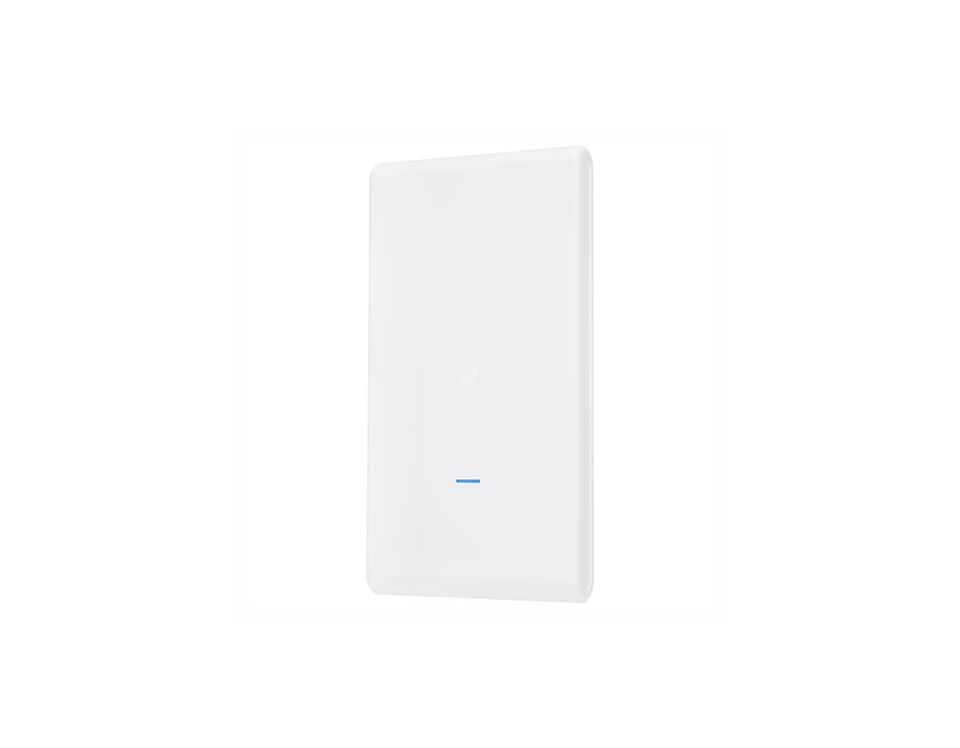

The UAP-AC-M-PRO-US UniFi AC Mesh Wide-Area Dual-Band Access Point from Ubiquiti Networks offers users extensive coverage of up to 600 feet and enhanced data transfer rates of up to 1300 Mbps on the 5 GHz frequency. A 3x3 MIMO internal antenna configuration achieves this by supporting multiple data paths for efficient network connections. Installation is straightforward with 802.3af PoE compliance and an included pole mounting kit. Once installed, users benefit from 802.11ac Wi-Fi access with speeds up to 1300 Mbps in the 5 GHz band and up to 450 Mbps in the 2.4 GHz band. The weather-resistant enclosure makes it suitable for outdoor deployment, and dual-band omni-directional antennas provide expansive outdoor coverage. The device also includes dual Gigabit Ethernet ports, with the primary port for data and PoE and the secondary for bridging. Power options include compatibility with an 802.3af switch, UniFi PoE switch, or a PoE adapter.

The UniFi Controller software, which can be installed on a PC, Mac, or Linux machine, allows for quick and easy configuration and management of an enterprise Wi-Fi network through a standard web browser. Features include real-time status, automatic device detection, map loading, and advanced security options. The system's RF map enables optimal AP placement and troubleshooting, while advanced RF performance features like spectral analysis, airtime fairness, and band steering enhance overall performance. Wireless Uplink functionality allows for extended range and real-time network topology changes. Guest portal and hotspot support include customization options, rate limiting, billing integration, and voucher-based authentication. The UniFi Controller also supports multi-site management, enabling a single controller to manage multiple, logically separated sites with their own configurations and statistics. For large deployments, flexible WLAN group management is possible, allowing the creation of multiple WLAN groups assigned to an AP's radio.
