Atlona USB 3.2 Gen 1 Data Extender Kit

The Atlona AT-USB-EX350-KIT is a data only USB 3.2 extender kit. It supports simultaneous extension of 5 Gbps USB 3.2 Gen 1 data and 480 Mbps USB 2.0 data up to 330 feet (100 meters) using a single, cost-effective Category 6A U/FTP cable.

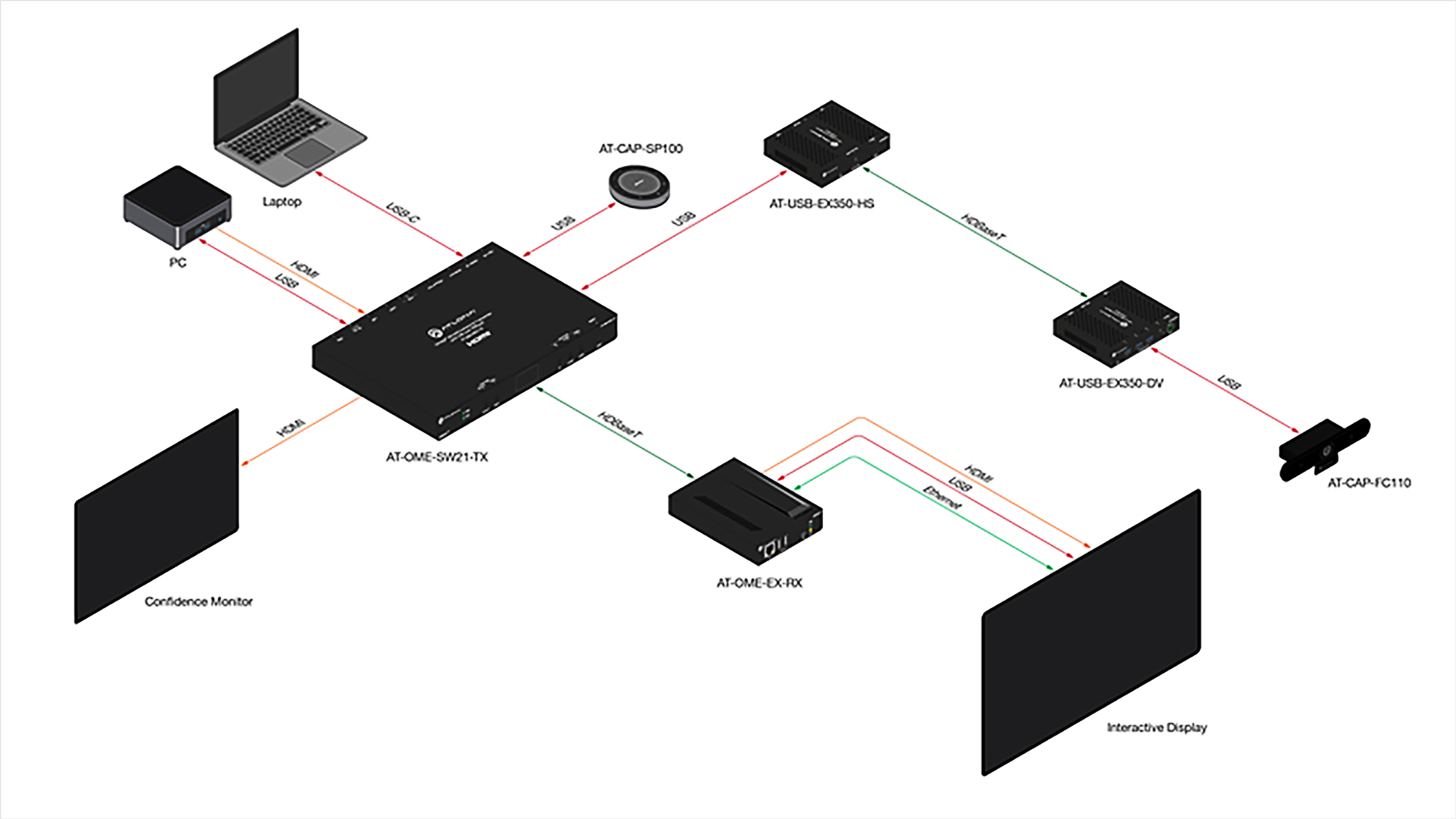

The USB-EX350-KIT is ideal for video conferencing or remote instruction applications where high data rate USB components including laptops, computers, cameras, microphones, and speakers are in different areas of the room.

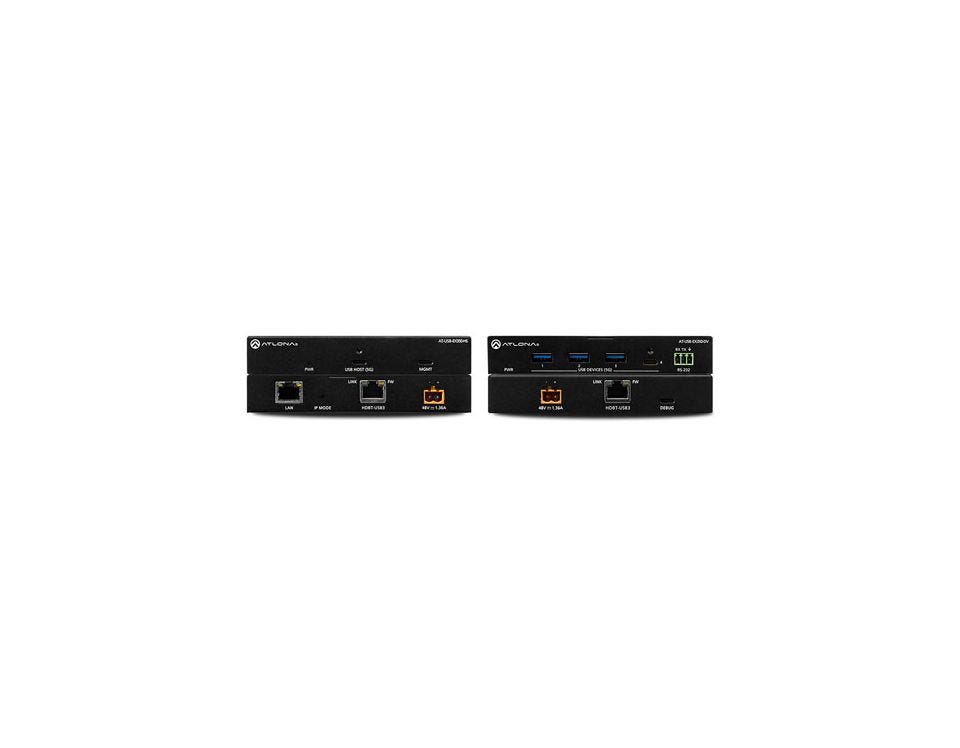

The USB-EX350-KIT is comprised of two endpoints. The host endpoint includes a USB-C port for connection to hosts such as laptops, computers, or other AV equipment that supports USB connectivity including many Omega™ Series products. The device endpoint includes three USB Type A ports and one USB-C port for connection to 4K cameras, conferencing bars, microphones, speakers, and other peripherals. Bidirectional remote power allows the kit to be powered by the included power supply connected to either the host or device endpoint.

A LAN connection on the host endpoint provides access to advanced integration capabilities including:

•  Monitor system and port status for validation and troubleshooting
•  Configure VBUS modes
•  Update firmware
•  IP to RS-232 translation supporting bi-directional serial control through the device endpoint

The USB-EX350-KIT is a great solution for extending USB 3.2 Gen 1 data up to 5 Gbps between components at distances greater than is possible with traditional cabling.

FEATURES:

•  Point-to-point USB extender kit for devices such as cameras, speakers, microphones and other peripherals

•  Extends USB data up to 330 feet (100 meters) using a single Category 6A U/FTP cable

•  Supports USB 3.2 Gen 1 data rates up to 5 Gbps

•  Supports USB 2.0 data rates up to 480 Mbps

•  One USB-C interface for host connection

•  Three USB-A and one USB-C for peripheral connections

•  Each peripheral port provides up to 1.5 amps (3.2 amps total) allowing even energy-hungry components to be powered by the device endpoint

•  Bidirectional remote power allows the kit to be powered by either the host or device endpoint

•  LAN port for configuration, monitoring, and control over the network

•  Configurable VBUS mode for each USB port on the device endpoint

•  IP to RS-232 translation for bi-directional RS-232 communications through the device endpoint

•  Compact enclosures can be mounted in furniture, behind a display, or above a projector

•  Kit includes host endpoint, device endpoint, power supply, 3′ USB-A to USB-C cable, captive screw connector, mounting brackets, and screws
