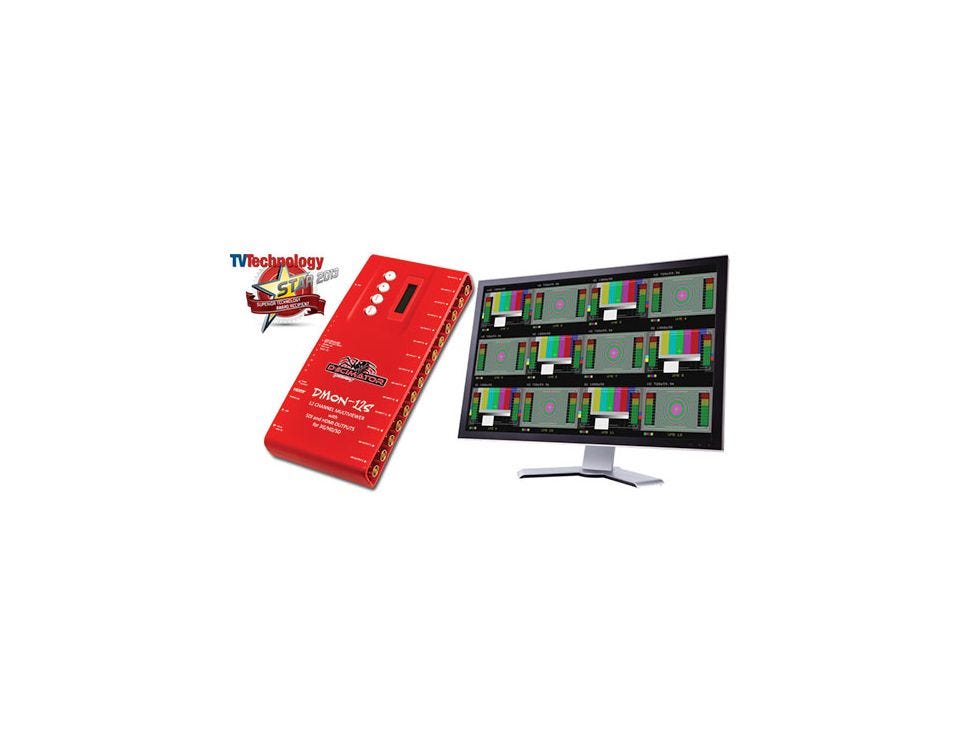

Decimator 12 Channel Multi-Viewer

Features -Low cost miniature (3G/HD/SD)-SDI 1 to 12 Multi-Viewer or 12 to 1 input multiplexer-Custom Layouts with various standard layouts-16 Character UMD overlay per window with individual enables, custom positioning and size-16 Channel Audio Metering overlay per window with individual enables, custom positioning and size-Safe Action and Safe Title overlay per window with individual enables and adjustmentCentre Cross overlay per window with individual enable-Audio ID overlay -Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border -Tally boxes allows for up to 4 Tallies per window -Fast switching between inputs using Full-Screen scaling -Selectable output format in both Full-Screen Multi-Viewer mode -Low latency buffering for each input allowing non-synchronous inputs -Linked (3G/HD/SD)-SDI and HDMI outputs 12 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total) -Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously-Variable aspect ratios per quadrant-In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs.
