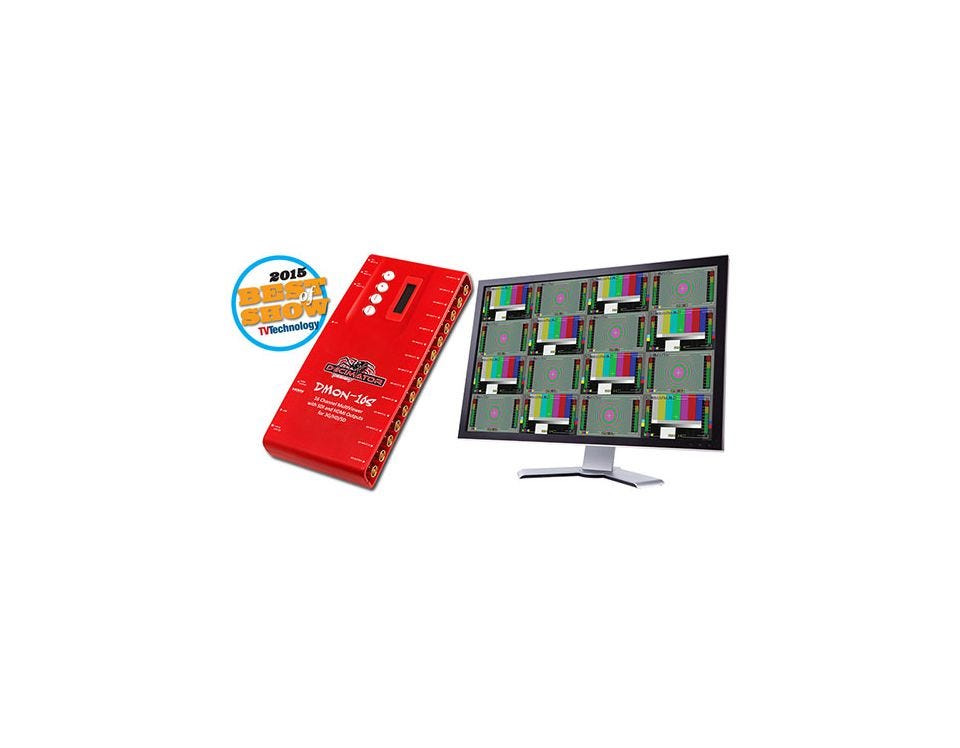

Decimator 1to16 Channel MultiViewer

Decimator 1 to 16 Channel MultiViewer with HDMI output for 3G/HD/SD and Custom Layouts
$1,495.00 / EA
Out of Stock:
This item is temporarily out of stock but more are on the way. Your order will be shipping as soon as it arrives.
BTX #:
Mfr. #:
Unit Size:
Features: - Low cost miniature (3G/HD/SD)-SDI 1 to 16 Multi-Viewer or 16 to 1 input multiplexer - Custom Layouts with various standard layouts - 16 Character UMD overlay per window with individual enables, custom positioning and size - 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size - Safe Action and Safe Title overlay per window with individual enables and adjustment - Centre Cross overlay per window with individual enable - Audio ID overlay - Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border - Tally boxes allows for up to 4 Tallies per window - Fast switching between inputs using Full-Screen scaling - Selectable output format in both Full-Screen and Multi-Viewer mode - Low latency buffering for each input allowing non-synchronous inputs - Linked (3G/HD/SD)-SDI and HDMI outputs - 16 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total) - Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously - Variable aspect ratios per window - In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs The DMON-16S is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.
More Information
Unit of MeasureEA
Unit Size1
AvailabilityOut of Stock
