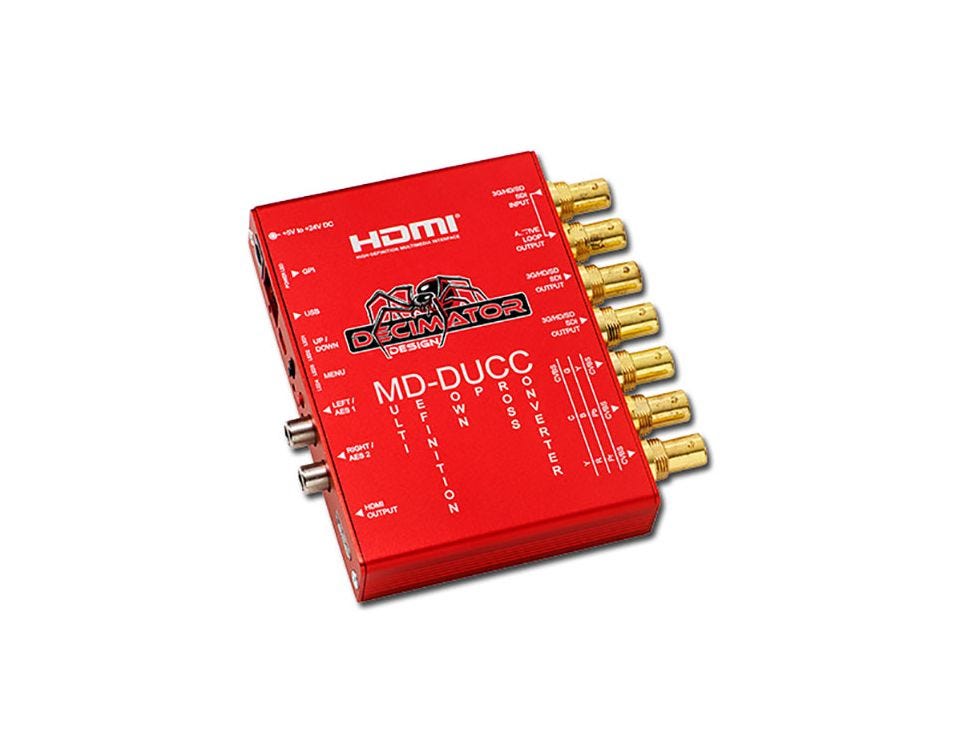

Decimator MultiDef Up Down Cross Convert

Features: -Auto detects 3G, HD or SD (26 Formats in total)-Full 10-bit data path and multipoint interpolation -Professional motion-adaptive de-interlacing-True Down Up Cross conversion, allowing the conversion between any of the supported formats. Simply select the output format you require, no matter what the input format is-Complete 16:9, 14:9 and 4:3 Aspect ratio conversion support, with individual selection for HD to HD, HD to SD, SD to HD and SD to SD conversions-Full 16-Channel Audio metering with: - Any of the 4 audio groups individually selectable - Vertical or Horizontal Bars - AES, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales - Bar & Float, Bar only or Float only - Transparency adjustment - Separate Bar and Float Ballistics control - Adjustable Reference level - Red, Yellow and Green Range adjustment - Bar thickness adjustment - Margin adjustment -Adjustable Graticules Generator with: - Separate enables for Safe Action, Safe Title and Centre Cross - Adjustable position for either Safe Action or Safe Title - Adjustable colours for Safe Action, Safe Title and Centre Cross -Text Overlays with: - Adjustable Foreground and Background colours - Adjustable 16 character text - Current input format status -HDMI output -Selectable analogue video output from either: -3 x CVBS out / YPbPr out / RGB out / CVBS & YC out -2 x (3G/HD/SD)-SDI 10-bit outputs with audio from input automatically delayed and passed.
