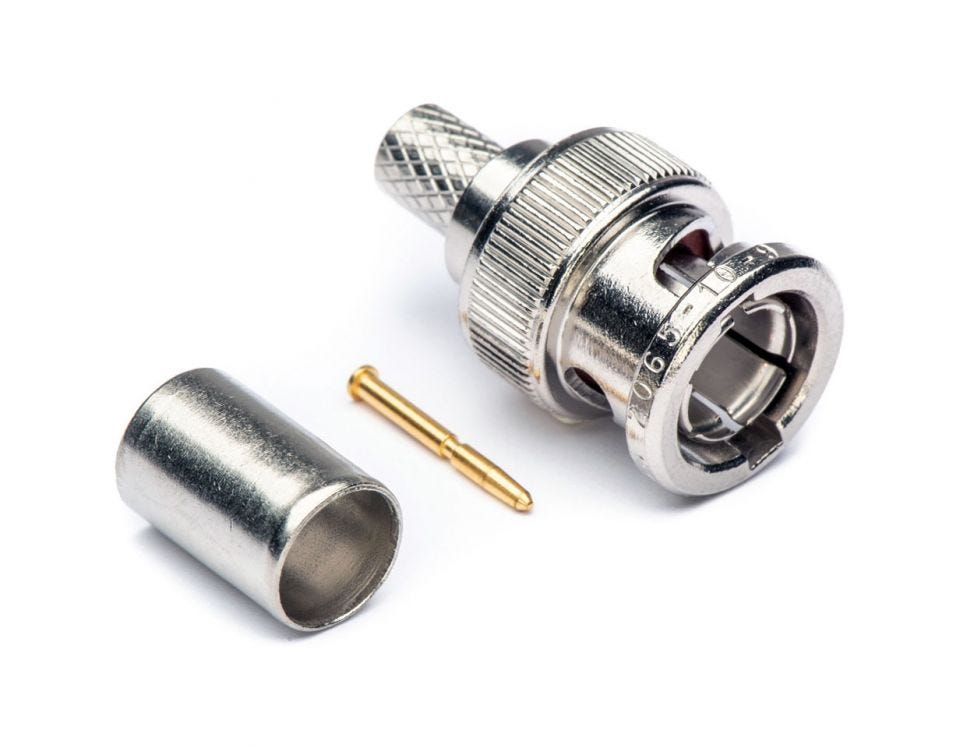

Kings 2065-10-9 BNC male plug true 75 Ohm connector is designed to meet SMPTE 259, 274, and 292M standards, and has excellent performance to 3 GHz. This 3-piece connector has a tarnish-resistant alloy electrodeposit finish on the body and bayonet, and a gold-plated center conductor. Fits RG6 including Belden 1694A and 1695A, West Penn 6350 and 256350, and Gepco VSD2001. Recommended Kings KTH-1000 crimp tool with KTH-2325 die.
Kings 2065 series connectors meet the stringent requirements for HDTV, exhibiting return losses of less than -36db to 1 GHz, -25db to 2 GHz, and -23db to 3 GHz. Precision machined to extremely tight tolerances, they are built with the toughness needed for the broadcast environment. Minimum 500 mating cycles.
Winchester KINGS brand 75 Ohm BNC series RF connectors have a reduced dielectric to achieve 75 ohm nominal impedance. All the connectors in this group have captive center contacts.
|Unit of Measure||EA|
|Manufacturer||Winchester Electronics Corp.|
