Kramer 4x4 Matrix Switcher

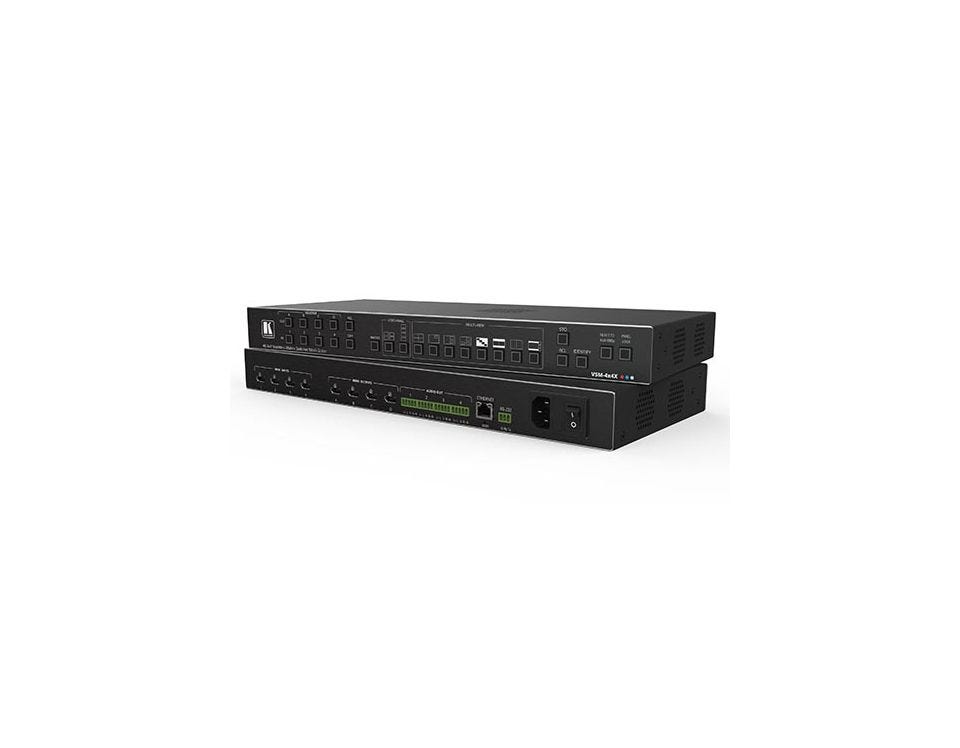

Kramer's VSM 4x4X 4K 4x4 Seamless Matrix Switcher/Multi Scaler. VSM 4x4X has four HDMI™, one DisplayPort, and two user definable (universal) analog video inputs (each can be set as computer graphics, composite video, s-Video (Y/C) or component video).

It up- or down scales to selectable output resolutions (up to 4K/UHD) and provides glitch-free switching between sources through fast FTB™ (fade-thru-black) switching technology. The scaled signal outputs simultaneously to a 15 pin HD computer graphics and an HDMI connector output.

Rich audio support is also included, with digital audio embedding and de-embedding, as well as 7 analog stereo inputs; and analog, S/PDIF, and speaker outputs. VSM 4x4X is housed in a 19” 1U rack mountable enclosure, with rack “ears” included, and is fed from a 100-240 VAC universal switching power supply.

Features

• PixPerfect™ Scaling Technology — Kramer’s precision pixel mapping and high quality scaling technology.

• Fast Fade–Thru–Black (FTB™) Switching — Video switching transitions are clean and fast. The video fades to black and the new input fades from black for smooth, glitch–free switching. The output signal provides constant sync so the display never glitches.

• Output Resolutions — With selectable refresh rates up to 4K/UHD.

• Noise Reduction — Built–in noise reduction and picture enhancement features.

• Built–in Time Base Corrector — Stabilizes video sources with unstable sync.

• Reduces Chroma Noise — Specifically designed to improve video quality by reducing chroma noise.

• Powerful Audio Features — Via DSP technology including audio equalization, mixing, delay and so on.

• HDMI Support — HDR, CEC, ARC, 4K@60Hz, 3D, Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 32 channels of uncompressed audio as specified in VHDMI 2.0.

• Includes numerous filters and algorithms for eliminating picture artifacts.
