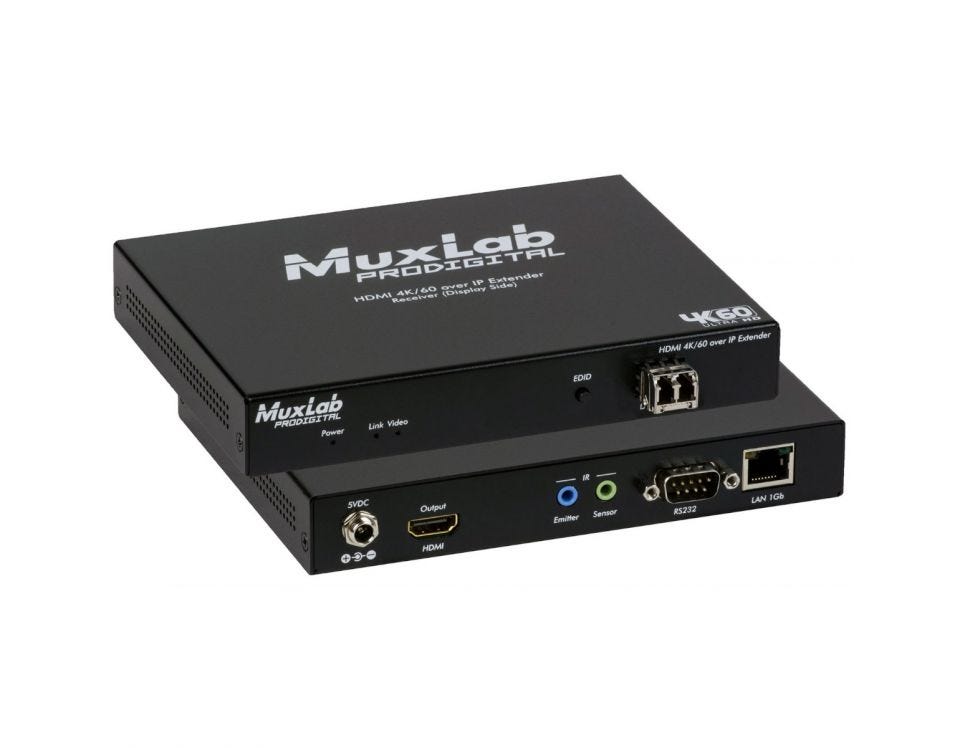

Muxlab 500761-RX

The AV over IP 4K/60 Uncompressed Extender, Fiber allows HDMI source equipment supporting up to 4K @ 60Hz resolution to be connected and extended to create a 4K/60 HDMI based Video Wall, Virtual Matrix Switch, and Virtual Splitter arrangements of user configurable size (X by Y) supporting 100’s of screens, depending on network bandwidth, utilizing one Receiver for each display in the array. Each Transmitter (500761-TX) and Receiver (500761-RX) can be connected via OM3 multimode fiber cable with dual LC connectors up to 985ft (300m) from a 10Gig Ethernet Switch. The Transmitter and Receiver, each come with a power supply, an IR Emitter and IR Sensor for IR based remote control applications, a wall mount bracket kit for securing the unit to a wall and a 4-pin terminal block connector for RS232 connectivity.
