Muxlab Dante 2-Channel Analog Audio Enco

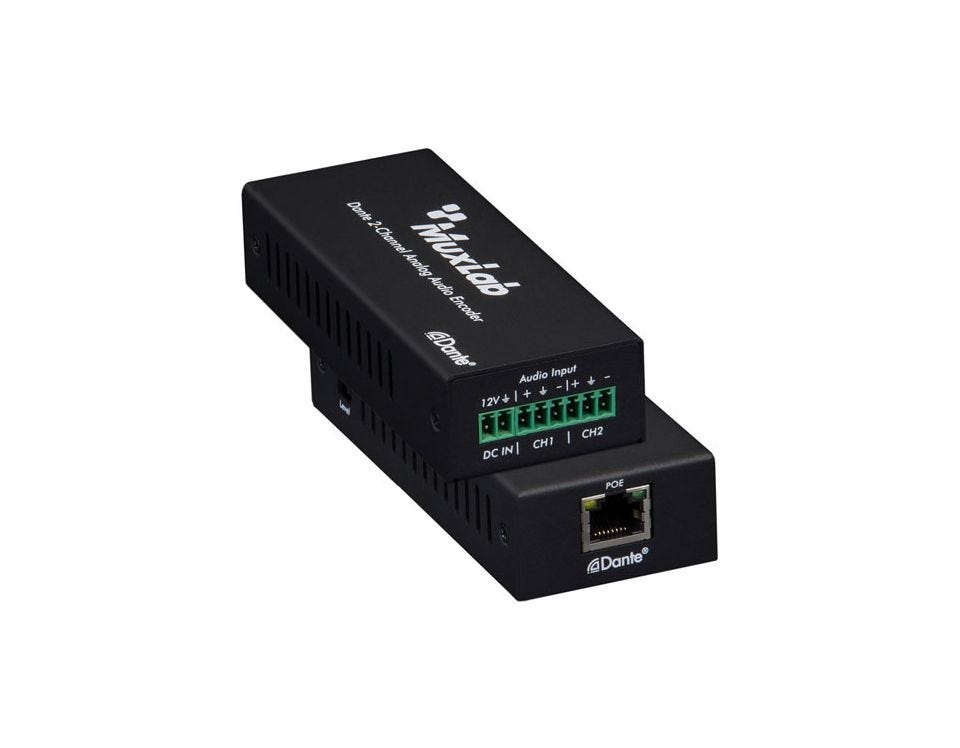

This Dante 2-Channel Analog Audio Encoder (model: 500551) permits non-Dante compatible analog audio equipment to interface with Dante compatible professional audio equipment. The unit allows the transmission of full-range (20Hz to 20KHz) balanced or unbalanced two-channel analog audio signals over the network to Dante equipment. It can be powered using either PoE from any PoE network switch or via local with a 12v power supply.

FEATURES:

•  Interface analog audio equipment to Dante audio equipment

•  Supports balanced/unbalanced 2ch analogue audio input

•  Audio sampling rate supports 44.1kHz,48kHz and 96kHz (24bit)

•  Audio input supports 3-level gain adjustment：+18dBu, 0dBu (default) and-10dBV

•  Supports DC 12V power supply and PoE function (IEEE802.3af Class 0)

•  Supports AES67 RTP audio transport
