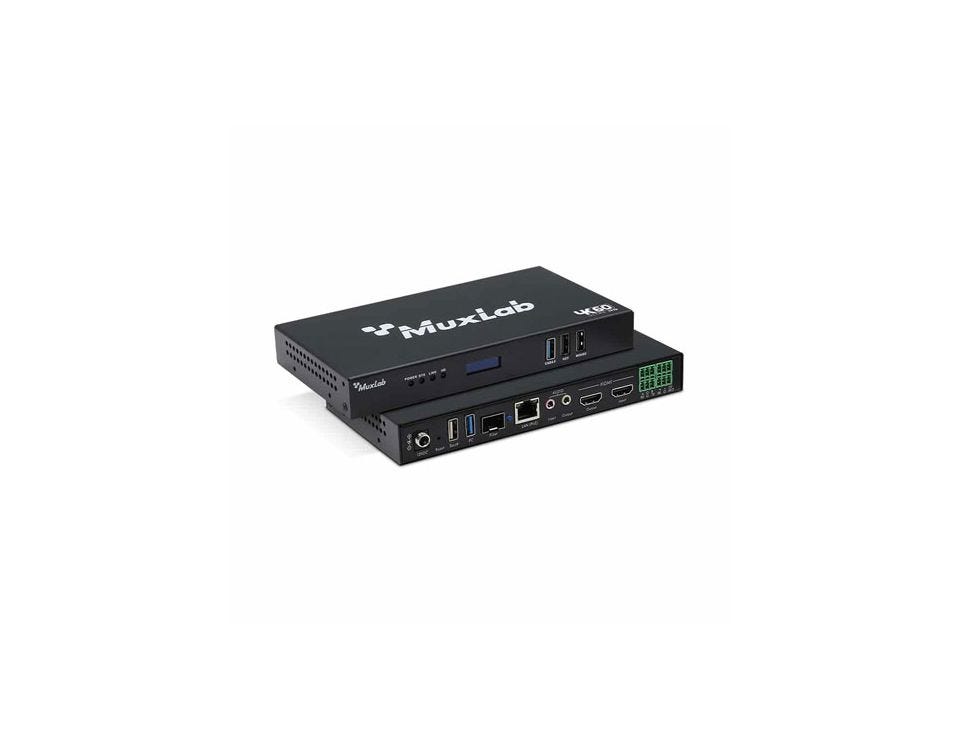

Muxlab HDMI over IP PoE Seamless 4K60

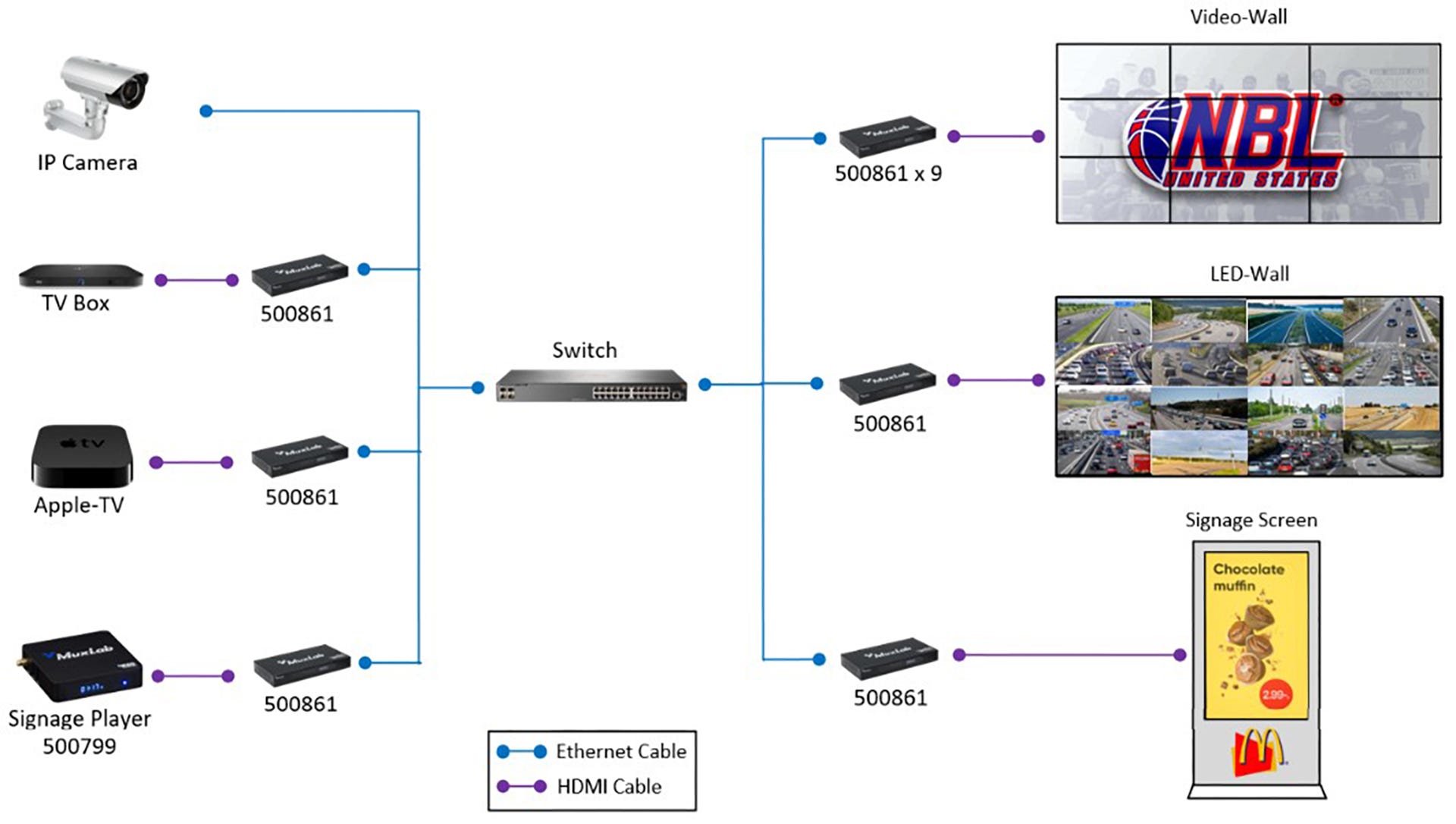

The HDMI over IP PoE Seamless Transceiver, 4K/60 allows HDMI source equipment to be extended locally up to 330ft (100m) at up to 4K @ 60Hz resolution via Cat5e/6 cable and is compatible with the MuxLab 500860 Transceivers to support point-to-point, point-to-multipoint and multipoint-to-multipoint configurations, Video Wall and Multiview capabilities in a low bandwidth expandable and cost-effective manner, without the need to install dedicated cabling systems. The exceptionally low bandwidth requirements of this device combination allows for streaming audio/video content over a local network, over WiFi, and over the Internet for distributed installations spread throughout the globe. The Transceiver accepts a 4K video @ 60Hz and streams the content to an H.264/H.265 Receiver to be displayed on a 4K monitor. The device supports PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch.

APPLICATIONS:

•  Supports up to 4K @ 60Hz video streams

•  H.264/265 video codec, excellent for LAN and Internet transmission

•  High image quality and ~80ms latency

•  Supports seamless switching

•  This unit is a Transceiver and can be used as a Transmitter, as a Receiver, or as both simultaneously

•  Supports Video Wall

•  Supports Multiview with up to 16-windows per screen

•  Supports image rotation, scrolling text, banner, etc. RS232, RS485, USB, Relay and I/O for remote control of end devices

•  PoE powered, via PoE (PSE) Ethernet Switch

•  Managed via Muximus Network Controller (500813)
