Muxlab SDI to USB3.0 Video Cap
$302.00 / EA
Out of Stock:
This item is temporarily out of stock but more are on the way. Your order will be shipping as soon as it arrives.
BTX #:
MUX-500705
Mfr. #:
500705
Unit Size:
1

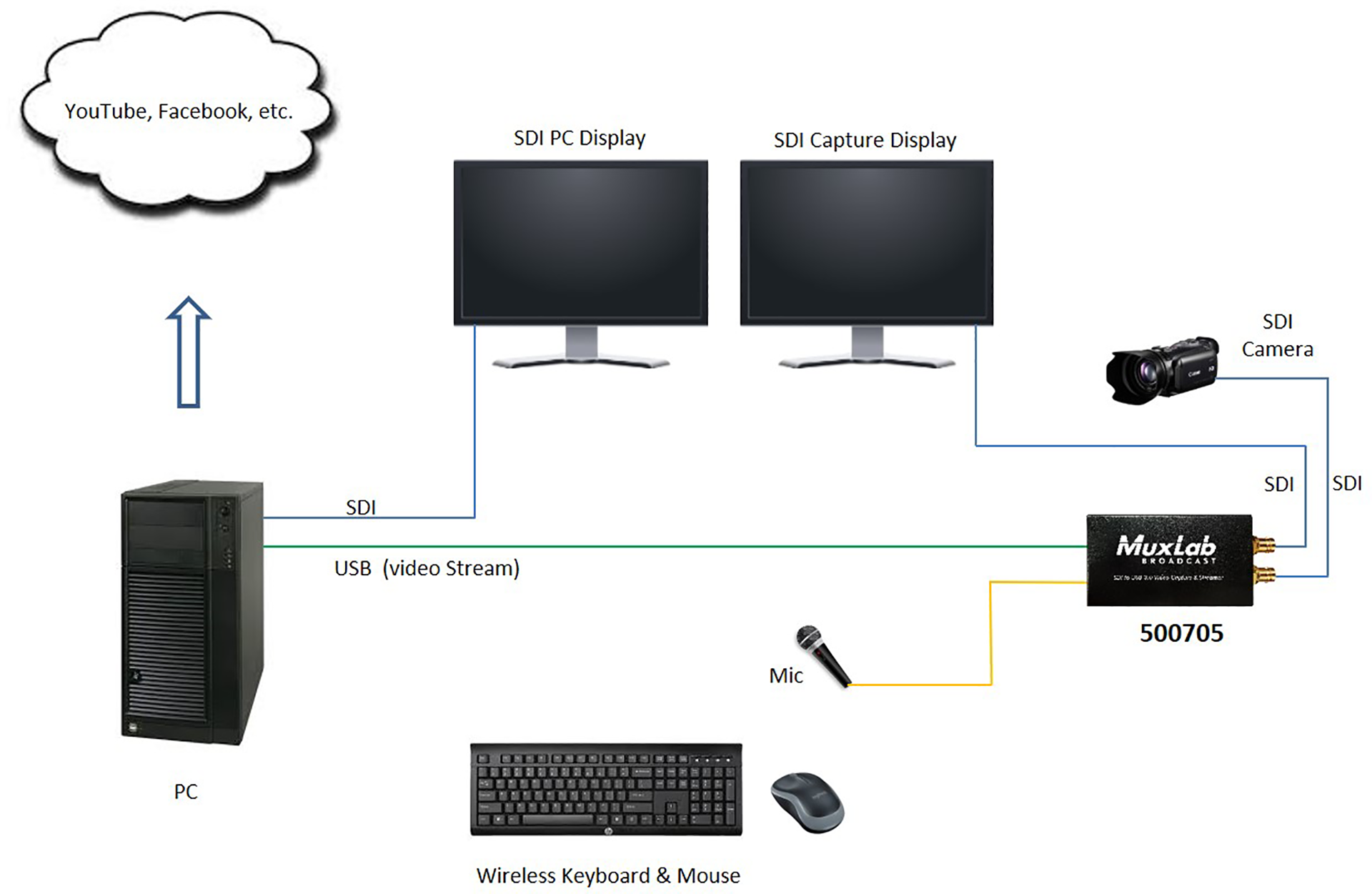

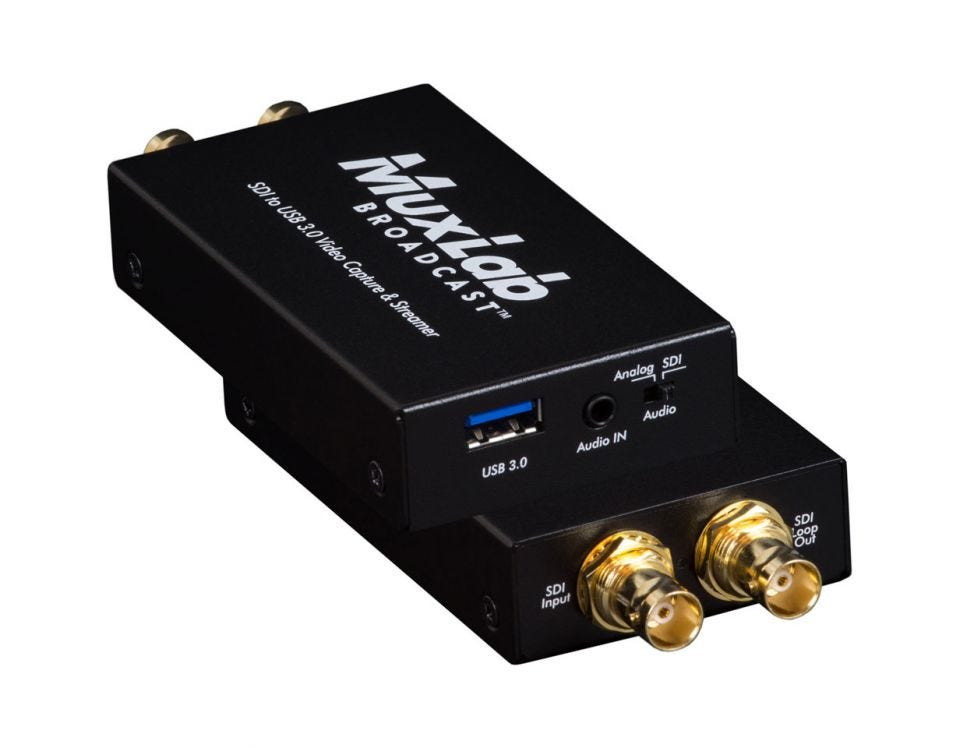

The SDI to USB 3.0 Video Capture & Streamer (500705) allows the user to record from SDI video sources to a PC over USB 3.1 Gen 1 (USB 3.0). The unit supports an SDI Input port for the source and SDI Loop Out for a monitor. The 500705 is capable of connecting to a 3G/HD/SD-SDI (1080p @ 60Hz) source and will stream at up to 1080p/60 over the USB 3.1 Gen 1 port to a PC or similar device to record and/or send the video to a broadcasting service such as YouTube, Facebook, and other broadcasting services. The device is compatible with OBS Studio, AMCap, etc., and supports a variety of SDI sources such as Cameras, Computers, Media Players, and many others. The SDI to USB 3.0 Video Capture & Streamer supports a 2CH Audio In port for a microphone. The Audio streamed can be selected between the embedded SDI Audio or the 2CH Audio In port.
Features
- - Capture video up to 3G/HD/SD-SDI (1080p @ 60Hz), and stream video via USB 3.1 Gen 1 (USB 3.0) to a PC at up to 1080p/60
- - Supports UVC1.0
- - SDI Loop Out port to connect to a display
- - Supports H.264 compression
- - Auto detects video format
- - 2CH Audio In port for a microphone
- - Supports Windows 7/8.1/10, Mac and Linus OS
- - Record from SDI sources such as Cameras, Computers, Media Players, etc
- - Compatible with OBS Studio, AMCap, etc.
| Unit of Measure | EA |
|---|---|
| Unit Size | 1 |
| Mfr. | 500705 |
| Manufacturer | Muxlab |
| uom | EA |
| Availability | Out of Stock |
