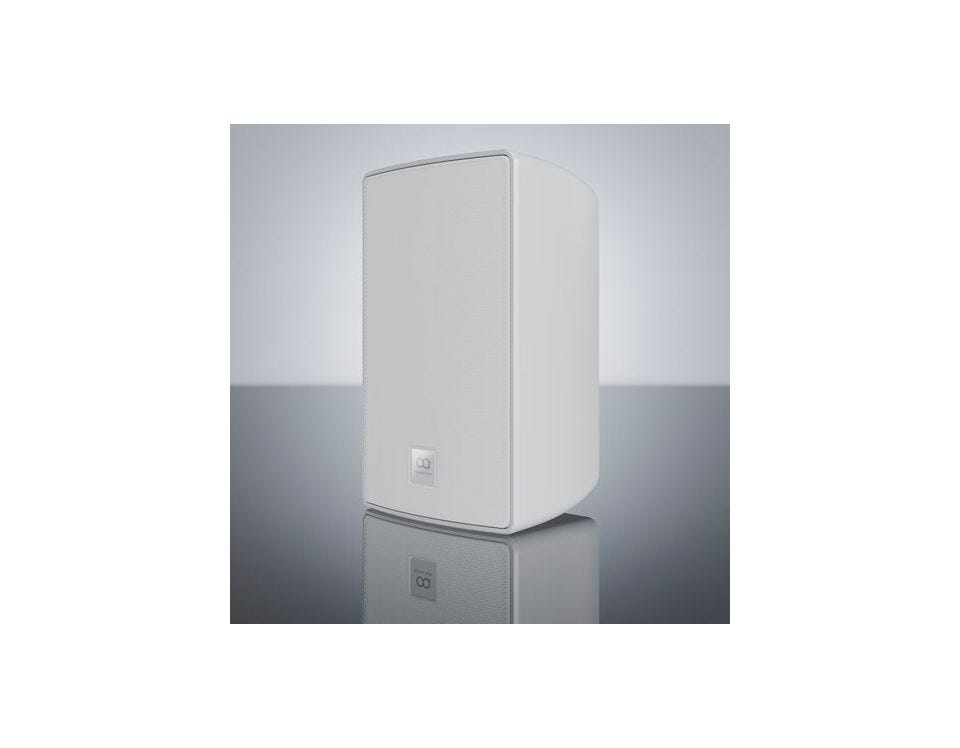

Cuboid 5TX is a full-range, two-way, passive 5” loudspeaker designed to give exceptional sound quality in a very small form factor for distributed applications with high-quality background music and speech reproduction.

With its attractive design and included mounting hardware, Cuboid 5TX can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.

Cuboid 5TX features a 5.25” low-frequency driver and a 0.75” silk dome high-frequency driver mated to a shallow wave guide for consistent HF distribution.

Each Cuboid 5TX can be run on a series of 70 or 100V taps or at low impedance. Tap selection is via a rotary switch on the rear of the cabinet.

When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end-user control simple and intuitive.

• Discreet size, high performance

• Portrait or landscape mounting options

• Wall bracket included

• Max SPL 105dB (continuous) 111dB (peak)
• 130° horizontal x 120° vertical coverage

• IP54 for outdoor use with accessory terminal cover

• 8 ohm or 70/100V line operation
