Wall/ceiling Bracket U-bracket Kit

The Mb200 installation kit consists of a U-bracket, two M8 x 1.25 hex-head bolts, four lock washers, two friction pads, and two ⅜-24 hex-head bolts. It is designed to accommodate the System 200 installation in various ways.

Wall or Ceiling Mounting

The robust design of the Mb200 installation bracket allows the System 200 speakers to be mounted in almost any position to obtain the desired sound coverage.

Flying Installations

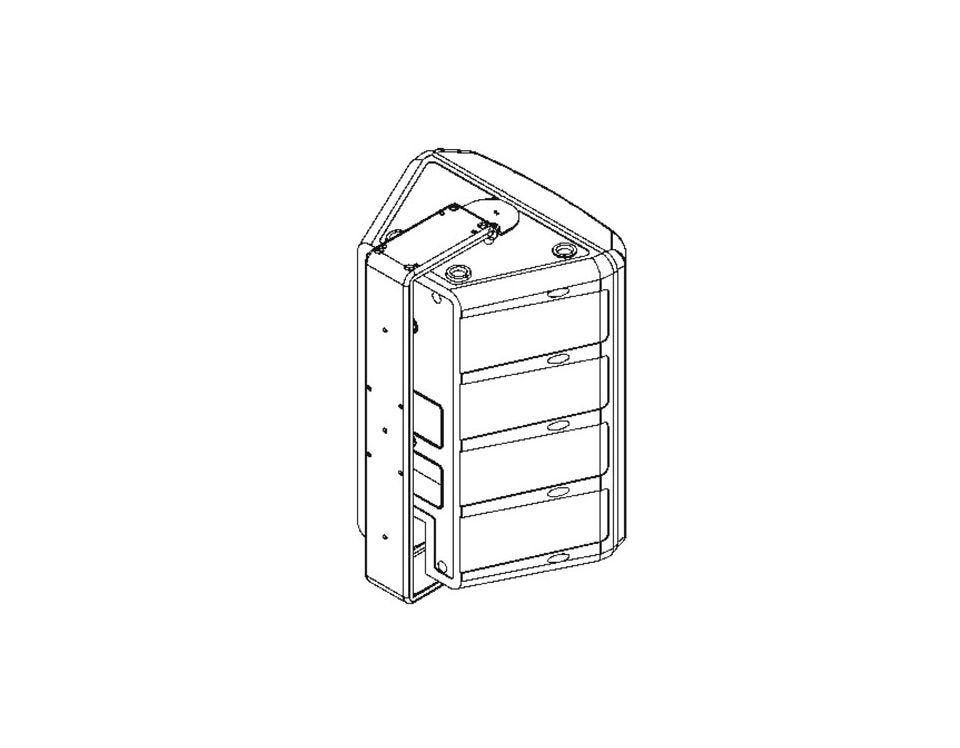

The Mb200 bracket "captures" the speaker in a rigid frame with structurally sound locations for attaching rigging hardware. These attachment points are four 12.7-mm (½-in) diameter holes located on the ends of the bracket. A ⅜-in "quick link" (or similar hardware) can be readily connected to each attachment point.

System 200 speakers can be flown individually in horizontal or vertical positions, or two speakers can be flown together in a vertical position.

System 200 Horizontal Arrays

Arrays of two to six speakers are securely supported in a frame comprised of Mb200 and Mb300 brackets. To create a horizontal array, two Mb200 brackets are simply locked into the correct alignment position using the Mb300 Horizontal Array Kit brackets. The array is extended using one additional Mb200 bracket and one Mb300 kit for each speaker. To complete the circle for a six-speaker array, one additional Mb300 kit is required.



FEATURES:

• It may be used in conjunction with OmniMount Series 100 support system
• Versatile design allows the speaker to be aimed at any angle from the wall or ceiling
• It provides a rigid frame for flying one or two speakers
• Creates arrays of two to six speakers when used with the Mb300 Horizontal Array Kit
