- Mixer feature : Hardware mixer into a single USB 3.0 interface
- Control interface : LAN, RS-232, USB (Software upgrade: Crestron Serial & IP modules)
- Local and remote keypad
- USB 2.0 cameras and HDMI capture
- HDMI output. Same video content as the USB 3.0 output.
- Line level stereo audio support
- PTZ control of USB cameras over USB 3.0 interface
- Digital Fluid technology: Internal frame buffers maximize frame rate with any host
- Hardware-based color space and sampling conversion
- Compatible with Windows, Mac OSX and Linux
- Compatible with BARCO ClickShare Conference

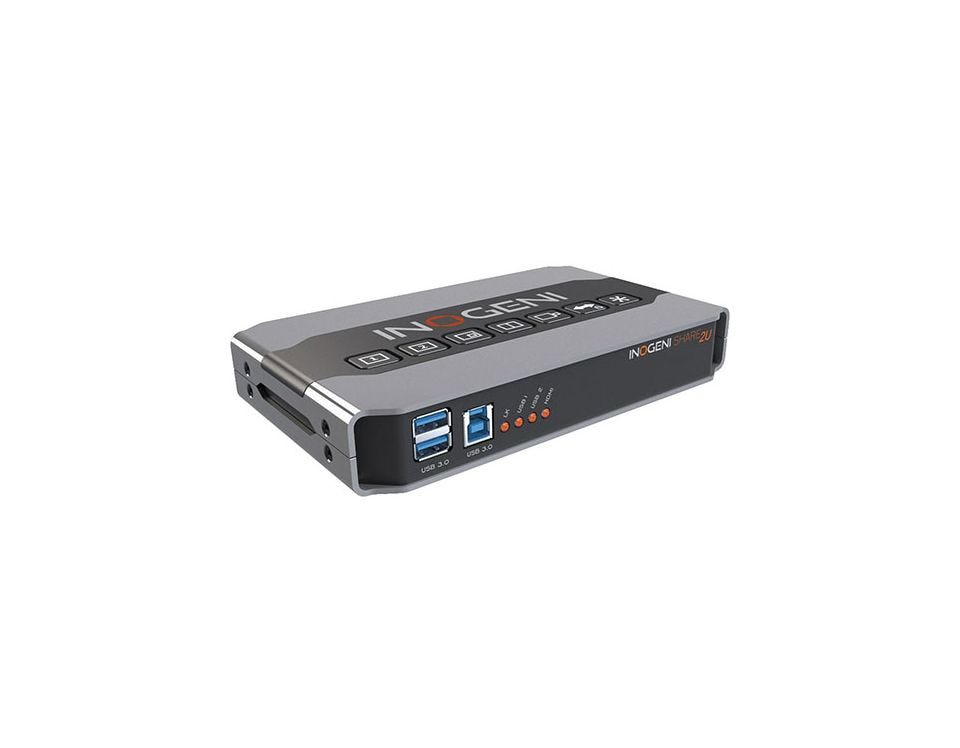

The device can be controlled by an application on the host side using our USB HID, RS-232 or LAN interfaces. You can also use the keypad on top of the device to control it manually. You can use the Mixer feature of the SHARE 2U to embed your two video sources into one single stream. This feature can be an important asset for you if your application only supports one video interface, like Skype®, Zoom®, Webex®, GoToMeeting® and all video conferencing applications.
The device may be controlled by the Control App or via an included API so you can design your own. You can read the sources status, presence, format, modify the EDID, update the firmware, etc. and ask for custom functionalities. You can also get Crestron modules in order to control the device using the LAN or serial interface. You can get a look at the interface of the Crestron module below.
The device has its own application in order to control the Mixer configuration using the USB HID or the LAN interfaces. You can also monitor the firmware versions installed on the device and the status of the inputs. You can update your device to the latest firmware using the Update menu. The C++ source code of this application is available on demand. Visit the Software Update page under the INOGENI SHARE2U section for more details.
